What is MCP Server?

An MCP Server is a program that provides contextual data and executable capabilities to AI applications through MCP clients
It exposes tools, resources, and prompts that can be dynamically discovered and used by an AI system
It can run locally or remotely and serves as a dedicated context provider for AI-driven workflows

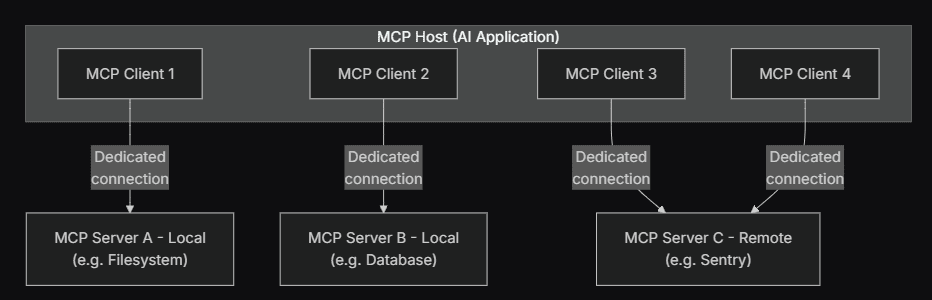

MCP Architecture Overview

MCP Host (AI Application) sits at the top and coordinates all MCP clients
Each MCP Client maintains a dedicated connection to exactly one MCP Server
MCP Server A and MCP Server B represent local servers (e.g., Filesystem, Database) connected via separate clients
MCP Server C represents a remote server (e.g., Sentry) and can be connected by multiple clients at the same time
The MCP Host can talk to many servers in parallel by creating multiple MCP clients, one per connection
- Reference from: MCP official docs

Why do we need MCP Server?

It separates context and tool logic from the AI application, improving modularity and scalability
It enables AI systems to safely interact with external systems like files, databases, and APIs
It allows multiple MCP clients to connect to different MCP servers simultaneously for richer context

How to implement?

Step 1: Create two Spring Boot applications, one for MCP Client and one for MCP Server

// Client project package
package com.telusko.mcp_demo;

// Server project package
package com.telusko.mcpserver;

Step 2: In the MCP Server project, create a DateTimeTool and expose methods using @Tool so MCP clients can invoke it

import org.springframework.ai.tool.annotation.Tool;
import org.springframework.stereotype.Component;

import java.time.ZoneId;
import java.time.ZonedDateTime;

@Component
public class DateTimeTool {

    @Tool(description = "Get Current date and time for user's timezone")
    public String getCurrentDateAndTime(){
        System.out.println("in local timezone");
        return ZonedDateTime.now().toString();
    }

    @Tool(description = "Get Current date and time for user's timezone")
    public String getCurrentDateAndTimeTimeZoned(String timezone){
        System.out.println("in specified timezone");
        return ZonedDateTime.now(ZoneId.of(timezone)).toString();
    }
}

Step 3: In the MCP Server project, create a NewsTool and expose it using @Tool so it becomes available as a callable tool

package com.telusko.mcpserver;

import org.springframework.ai.tool.annotation.Tool;
import org.springframework.stereotype.Component;
import org.springframework.web.client.RestTemplate;

@Component
public class NewsTool {

    private RestTemplate restTemplate = new RestTemplate();

    @Tool(description = "Get current news haedlines for specific topic")
    public String getNewsHeadlines(String topic){

        String apiKey = "<YOUR API KEY>";
        String url = "https://newsapi.org/v2/everything?q=" + topic + "&apiKey=" + apiKey;

        String result = restTemplate.getForObject(url, String.class);
        System.out.println(result);

        return result;
//        return "News Headlines for topic " + topic;
    }
}

Step 4: In the MCP Server project, register all tools as ToolCallbacks using a configuration class so the server can publish them

package com.telusko.mcpserver;

import org.springframework.ai.support.ToolCallbacks;
import org.springframework.ai.tool.ToolCallback;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.List;

@Configuration
public class McpServerConfig {

    @Bean
    public List<ToolCallback> toolCallbacks(DateTimeTool dateTimeTool, NewsTool newsTool){
        return List.of(ToolCallbacks.from(dateTimeTool, newsTool));
    }
}

Step 5: In the MCP Server project, configure the server port so the MCP Client can connect to it locally

spring.application.name=mcpServer
server.port=8282

Step 6: In the MCP Client project, create a controller that uses ChatClient and enables tool calling via ToolCallbackProvider

package com.telusko.mcp_demo;

import org.springframework.ai.chat.client.ChatClient;
import org.springframework.ai.tool.ToolCallbackProvider;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RequestMapping("/api")
public class MCPController {

    private ChatClient chatClient;

    public MCPController(ChatClient.Builder chatClientBuilder, ToolCallbackProvider toolCallbackProvider) {
        this.chatClient = chatClientBuilder
                .defaultToolCallbacks(toolCallbackProvider)
                .build();
    }

    @GetMapping("/chat")
    public String getAnswer(@RequestParam String question) {
        return chatClient.prompt(question).call().content();
    }
}

Step 7: In the MCP Client project, configure OpenAI API key and connect to MCP Server using SSE connection URL

spring.application.name=mcp_demo
spring.ai.openai.api-key=<your-api-key>
spring.ai.mcp.client.sse.connections.spring-ai-mcp.url=http://localhost:8282

Step 8: Use SSE-based connection for local communication where MCP Client subscribes to server tool publishing over HTTP streaming

spring.ai.mcp.client.sse.connections.spring-ai-mcp.url=http://localhost:8282

Key Points to Know

Stdio transport is used for local MCP servers and enables fast process-level communication
Streamable HTTP transport is used for remote MCP servers and supports secure HTTP-based access
SSE enables one-way real-time streaming from server to client over HTTP
Streamable HTTP supports bidirectional request-response with optional streaming
RMI allows method invocation across JVM boundaries with tight coupling
RPC enables language-agnostic remote function execution using structured protocols
